Other Technologies.

đŸ§© Lesson: Other Technologies – Emerging Innovations & Construction 3D Printing

✅ Summary

3D printing continues to evolve beyond traditional methods. In this lesson, you’ll explore cutting-edge technologies like volumetric and chip-based printers, alongside large-scale construction 3D printing that’s revolutionizing architecture and infrastructure. Understand how these innovations are reshaping what’s possible in additive manufacturing.

🎯 Learning Objectives

By the end of this lesson, learners will be able to:

  1. Describe pioneering new 3D printing methods such as volumetric, chip-based, and acoustic interface printing

  2. Explain how construction-scale printing technologies work and their real-world applications

  3. Evaluate the benefits and challenges of large-format additive manufacturing

  4. Identify organizations, projects, and efforts pushing these technologies forward

📘 Lesson Content

🧠 1. Cutting-Edge Printing Technologies

1.1 Volumetric (Tomographic) Additive Manufacturing

  • Creates 3D objects in seconds by projecting light patterns into resin-filled volumes, curing entire sections at once tomshardware.com+2en.wikipedia.org+2arxiv.org+2.

  • Eliminates the layer-by-layer constraint, enabling rapid and smooth builds of complex geometries up to centimeters in size.

  • Advances include Holographic VAM, which uses phase modulation to enhance resolution arxiv.org+1arxiv.org+1.

1.2 Volumetric High-Area Rapid Printing (HARP)

  • Developed in 2019 for fast, heat-managed SLA printing of large parts using a dynamic cooling interface origin-team.com+15en.wikipedia.org+15arxiv.org+15.

  • Enables continuous, high-speed builds without thermally induced defects, ideal for industrial-scale resin parts.

1.3 Silicon Photonics Chip-Based Printers

  • MIT researchers developed a coin-sized photonic chip that uses nanoscale optical antennas to cure resin via light – no moving parts en.wikipedia.orgtomshardware.com.

  • Represents a future path toward ultra-compact, wearable, or portable printers that can embed structures at the microscale.

1.4 Dynamic Interface Printing (DIP)

  • Uses acoustically modulated liquid–air boundaries to rapidly build cm-scale parts in seconds en.wikipedia.org+15arxiv.org+15tomshardware.com+15.

  • Key innovation: high resolution, speed, and compatibility with biocompatible materials, useful for biomedical manufacturing.

đŸ—ïž 2. Construction-Scale 3D Printing (3DCP)

2.1 What is Construction 3D Printing?

  • Large-scale additive manufacturing using materials like cementitious concrete.

  • Methods include powder binding, concrete extrusion, and robotic arm deposition en.wikipedia.org+1en.wikipedia.org+1.

2.2 Notable Technologies

2.3 Key Applications & Projects

  • Affordable housing: ICON’s Wolf Ranch community, Habitat for Humanity projects ($0.15–0.50/sq ft labor savings) the-sun.com.

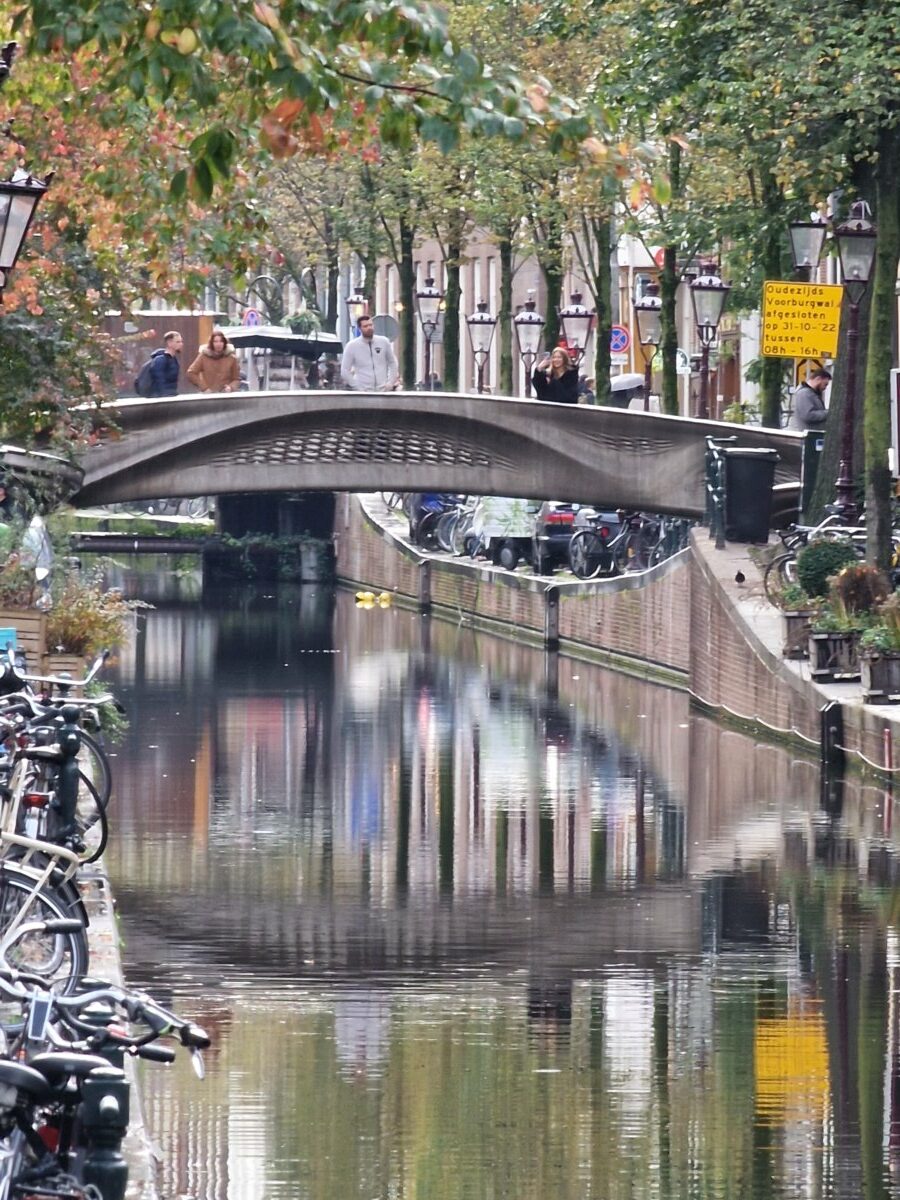

  • Large-scale infrastructure: World’s longest printed concrete bridge in Nijmegen (29 m length) arxiv.org.

  • Innovative builds: Australia’s first code-approved, two-storey printed house by Luyten (32 hr print time) apnews.com+7en.wikipedia.org+7en.wikipedia.org+7.

✅ 3. Pros & Cons of Construction 3D Printing

Pros Cons
Reduces material waste by printing only what’s needed constructconnect.com High costs for large-scale equipment
Cuts labor needs and human error Regulatory hurdles and building code adaptation
Enables freeform design and complex geometries Slower for simple, conventional structures
Accelerates build time (weeks vs months) Material stability and reinforcement present challenges

đŸ§© 4. Future Outlook

  • Researchers are exploring autonomous drone-based printing, swarm methodologies, and lunar construction prototypes origin-team.com+13en.wikipedia.org+13arxiv.org+13.

  • Advances in photonic and volumetric printing aim to shrink 3D printers to chip-size, revolutionizing desktop manufacturing tomshardware.com.

  • Construction 3D printing is set to mature over the next decade with the integration of lower-carbon mix designs, regulatory standards, and hybrid print–assembly systems .

🧠 5. Summary

Emerging 3D printing technologies are expanding into ultra-fast, volumetric, micro, and large-scale domains. From chip-based microprinters to whole houses printed on-site, these innovations are redefining manufacturing—from desktop to the built environment. Understanding these technologies empowers you to envision 3D printing across all scales.
